Monitor selection box with stereo/mono switch

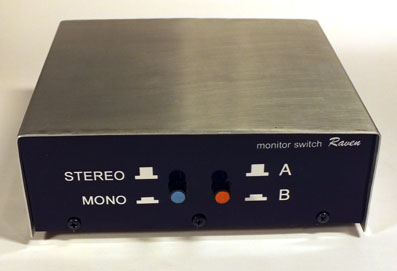

switch box

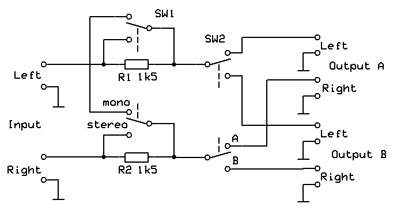

schematic diagram

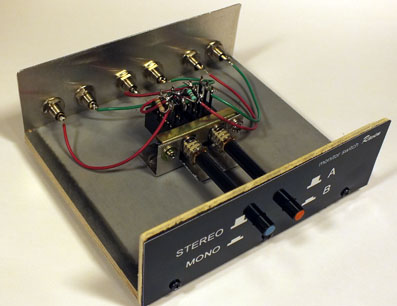

Well, these pictures should give you a pretty good idea of this simple project. I didn't have a suitable box, so I had to make one. It is just pieces of plywood and aluminum. I used push button switches, but any type of DPDT switches work. Note that this is for unbalanced lines only. A balanced version would be a bit more complicated (4PDT switches?).

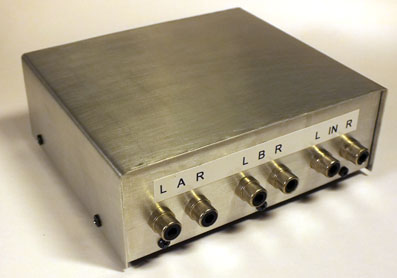

back panel

©Jukka Korppi 2018
